- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Series
- IMC-610
- Product Type
- Transceiver/Media Converter

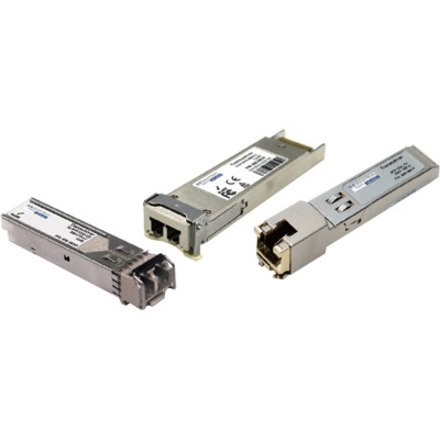

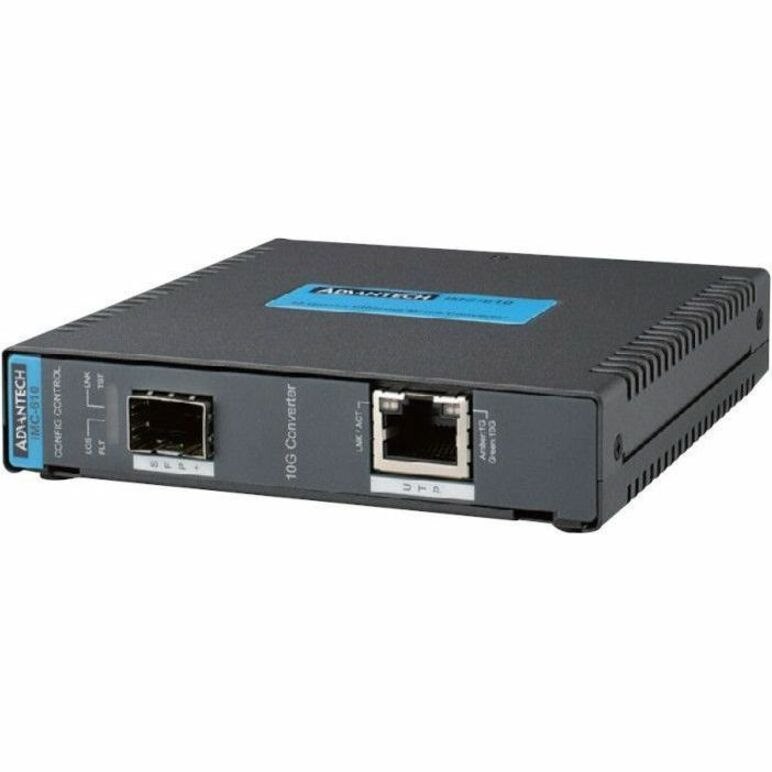

IMC-610 SFP+ 10G Medial Converter is equipped with one 10G/5G/2.5G/1G/100M BASE-T auto-negotiation port and one 10GBASE-X SFP+ Slot. It supports 10Gigabit Ethernet media converter from copper 10GBASE-T to fiber multi-mode or single-mode, utilizing 10BASE-SR or 10GBASE-LR SFP+ transceiver installed in the SFP+ slot to extend distances to servers, switches and patch panels, which supports the transmission distance from 400m up to 80km to facilitate 10G equipment and devices deployment.
- Interfaces/Ports
- Total Number of Ports
- 1
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Fiber Mode Supported
- Single-mode
- Multi-mode
- Maximum Distance Supported
- 80 km
- Fiber Optic Cable Core/Cladding Specification
- 50/125 µm
- 62.5/125 µm
- 9/125 µm
- I/O Expansions
- Total Number of Expansion Slots
- 1
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 1
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Technology
- 10GBase-X
- 10GBase-SR
- 10GBase-T
- 5GBase-T
- 2.5GBase-T
- 1000Base-T
- 100Base-T
- Power Description
- Power Source
- AC/DC
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- DIN Rail Mountable
- Panel-mountable
- Standalone
- Height
- 0.9"
- Width
- 4.3"
- Depth
- 4"
- Miscellaneous
- Application/Usage
- Network
- Certifications & Standards
- EN61000-4-2
- EN61000-4-3
- EN61000-4-4
- EN61000-4-5
- EN61000-4-6
- EN61000-4-8
- EN61000-4-11
- IEC 60068-2-27
- IEC 60068-2-32
- IEC 60068-2-6
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
