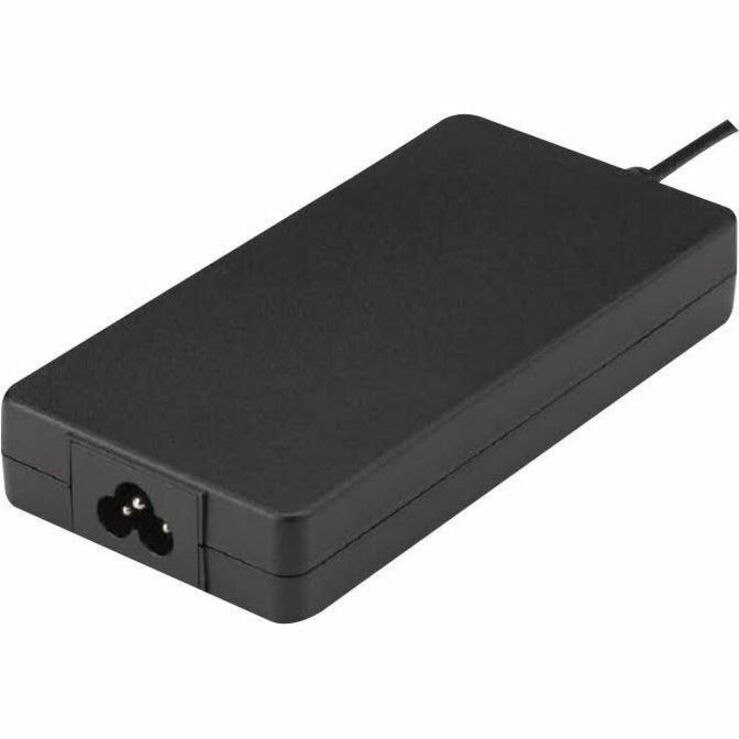

This product is a 120 watts AC to DC adapter for use in Communication Systems & PoE Systems that have a high wattage demands. This adapter operates at 90 to 264 VAC input voltage
- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- AC Adapter
- Technical Information
- Device Supported
- Communication System
- PoE Device
- Universal Adapter
- Yes
- Features
- Overcurrent Protection
- Over Temperature Protection
- Overvoltage Protection
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 V AC - 240 V AC
- Frequency
- 47 Hz
- 63 Hz
- Output Voltage
- 54 V DC
- Maximum Output Power
- 120 W
- Maximum Input Current
- 1.80 A
- Maximum Output Current
- 2.22 A
- Physical Characteristics
- Height
- 1"
- Width
- 3"
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Minimum Storage Temperature
- -4°F (-20°C)
- Maximum Storage Temperature
- 176°F (80°C)
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
