- General Information
- Manufacturer
- Advantech Co., Ltd
- Manufacturer Website Address
- http://www.advantech.com
- Brand Name
- Advantech
- Product Type
- PoE Injector

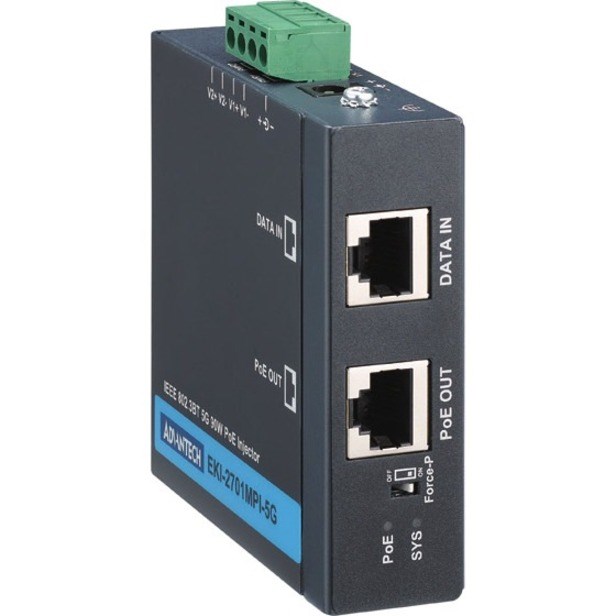

EKI-2701MPI-5G is a next-generation injector which is compliant with IEEE 802.3af/at/bt. With PoE (Power over Ethernet) technology, both data and power to Ethernet-enabled devices run on a standard CAT6(A)/CAT7 cable to serve up to 90W.
EKI-2701MPI-5G injector flexibly deploys standard and high powered PD devices to transfer data and power simultaneously through one Ethernet cable while reaching distance up to 100 meters. It supports dual power inputs via a pluggable terminal block or DC jack. DIN-rail and wall-mounting installation options provide greater user expediency. With the use of EKI-2701MPI-5G,Wifi AP at 5Gbps transmission rate can be easily deployed as it is capable of providing power up to 90W and supporting multi data rate.
- Power Description
- Input Voltage
- 57 V DC
- Maximum Output Power
- 90 W
- Interfaces/Ports
- Input Ports
- 1 x 10/100/1000TX
- Output Ports
- 1 x PoE
- Physical Characteristics
- Form Factor
- DIN Rail/Wall Mountable
- Height
- 3.1"
- Width
- 3.3"
- Depth
- 1"
- Miscellaneous
- Package Contents
- Hardened Multi-Speed Mega PoE Injector
- AC Adapter
- Additional Information
- Transmission Distance Ethernet: Up to 100 m (mid-span)
- Transmission Speed: Up to 5Gbps
- DATA IN: RJ45
- PoE OUT: RJ45
- PoE
- SYS
- Certifications & Standards
- Communications:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.3bt
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3x
- IEEE 802.3ab
- IEEE 802.3bz
- IP40
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-8
- CE
- FCC
- UL62368
- IEC 60068-2-27
- IEC 60068-2-32
- IEC 60068-2-6
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
