- General Information
- Manufacturer
- Dataram Corporation
- Manufacturer Website Address
- http://www.dataram.com
- Brand Name
- Dataram
- Product Type
- RAM Module

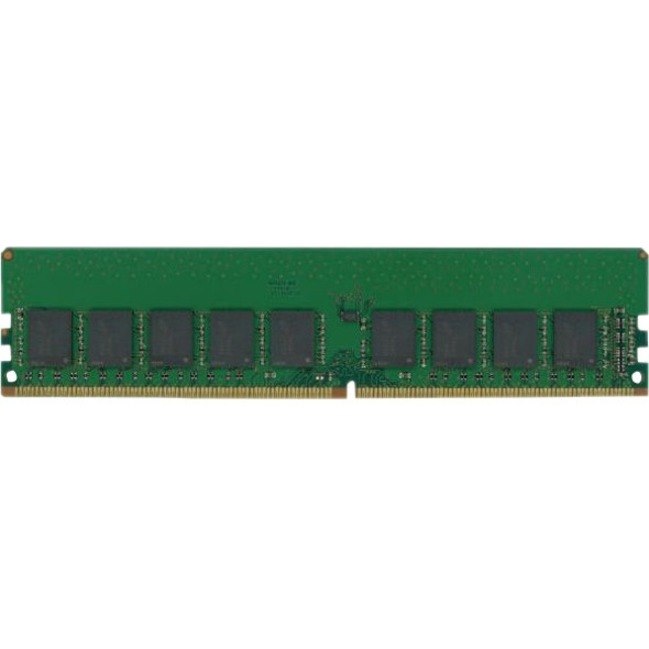

DTM68145C is an unbuffered 2Gx72 memory module, which conforms to JEDEC's DDR4-2666V, PC4-2666V standard. The assembly is a Dual-Rank containing - eighteen Samsung 1Gbx8 DDR4-2666V SDRAMs. One 2K-bit EEPROM is used for Serial Presence Detect.
Both output driver strength and input termination impedance are programmable to maintain signal integrity on the I/O signals in a Fly-by topology.
- Warranty
- Limited Warranty
- Lifetime
- Technical Information
- Memory Size
- 16 GB
- Memory Technology
- DDR4 SDRAM
- Memory Voltage
- 1.20 V
- Number of Modules
- 1 x 16GB
- Memory Speed
- 2666 MHz
- Memory Standard
- DDR4-2666/PC4-21333
- Error Checking
- ECC
- Signal Processing
- Unbuffered
- CAS Latency
- CL19
- Physical Characteristics
- Number of Pins
- 288-pin
- Form Factor
- DIMM
- Thickness
- 156.7 mil
- Width
- 1.2"
- Length
- 5.3"
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
